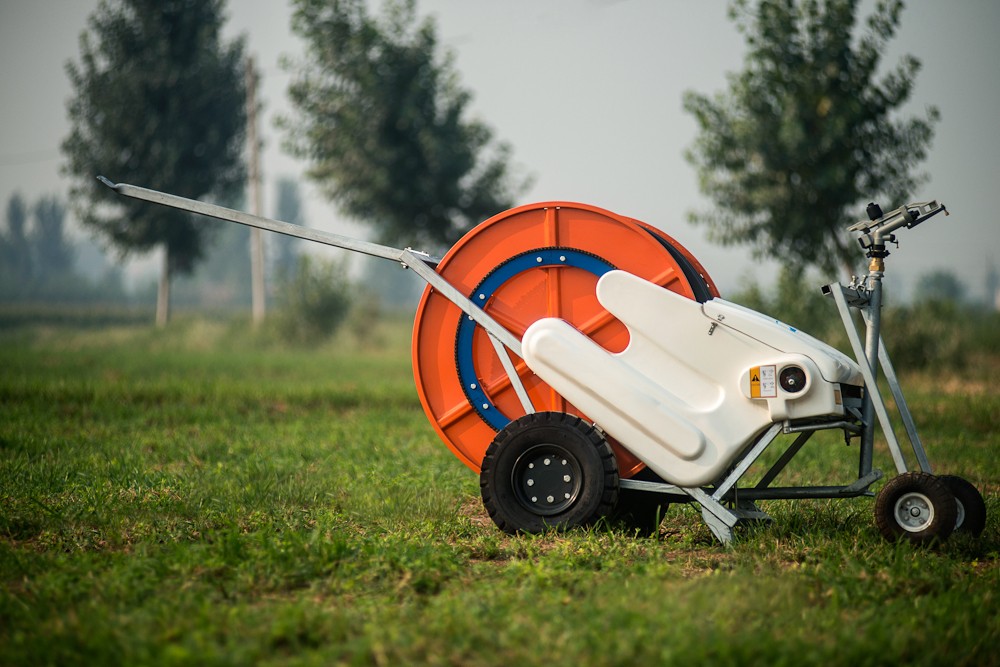

LNI01 Series Hose Reel Irrigator

LNI01 Series Hose Reel Irrigator

LNI01 Series Hose Reel Irrigator is composed of 50/55/60 three models. Thewater flow ranges from 6.8 to 21 m3/h, the inlet pressure from 0.25 to 0.75MPa, PE pipe diameter from 50 to 60 mm, the length from 110 to 180 m. Itirrigates 8 to 26 hectares per set.

Newly designed turbine increases the performance by 10%.

Easy handling and convenient transport.

Newly designed speedometer shows the retraction speed of PE pipe.

Service life is over 15 years.

Newtype turbine TZ 20

Our company has gained national patent for utility models for the newenergy saving axial-flow type turbine.

High efficiency and precise control of irrigation.

The turbine is connected directly with gearbox by a coupling instead oforiginal belt.

The mechanical loss is reduced by 5%.

Newspeed regulating mechanism

Simple in structure and convenient in handling;

Constant retraction speed and increased irrigation uniformity.

Rugged support frame

Compact in structure and safe and convenient in handling.

Good steel of high intensity, hot-dip galvanization, long service life.

Sprinkler

Imported Italy SIME sprinkler;

Working pressure 0.2-0.4MPa;

Sprinkling distance 20-30 meters;

better performance in misting and irrigation uniformity.
