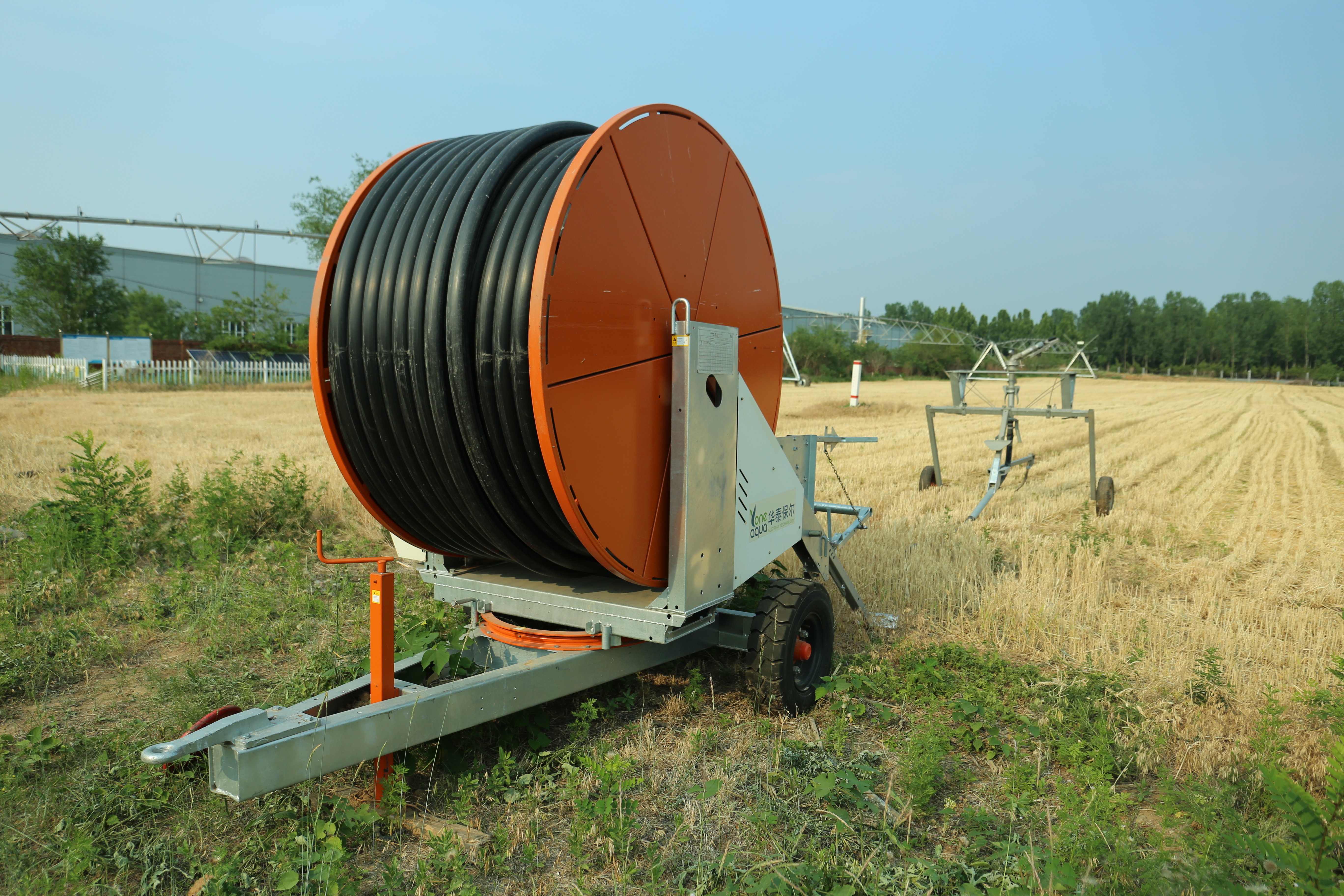

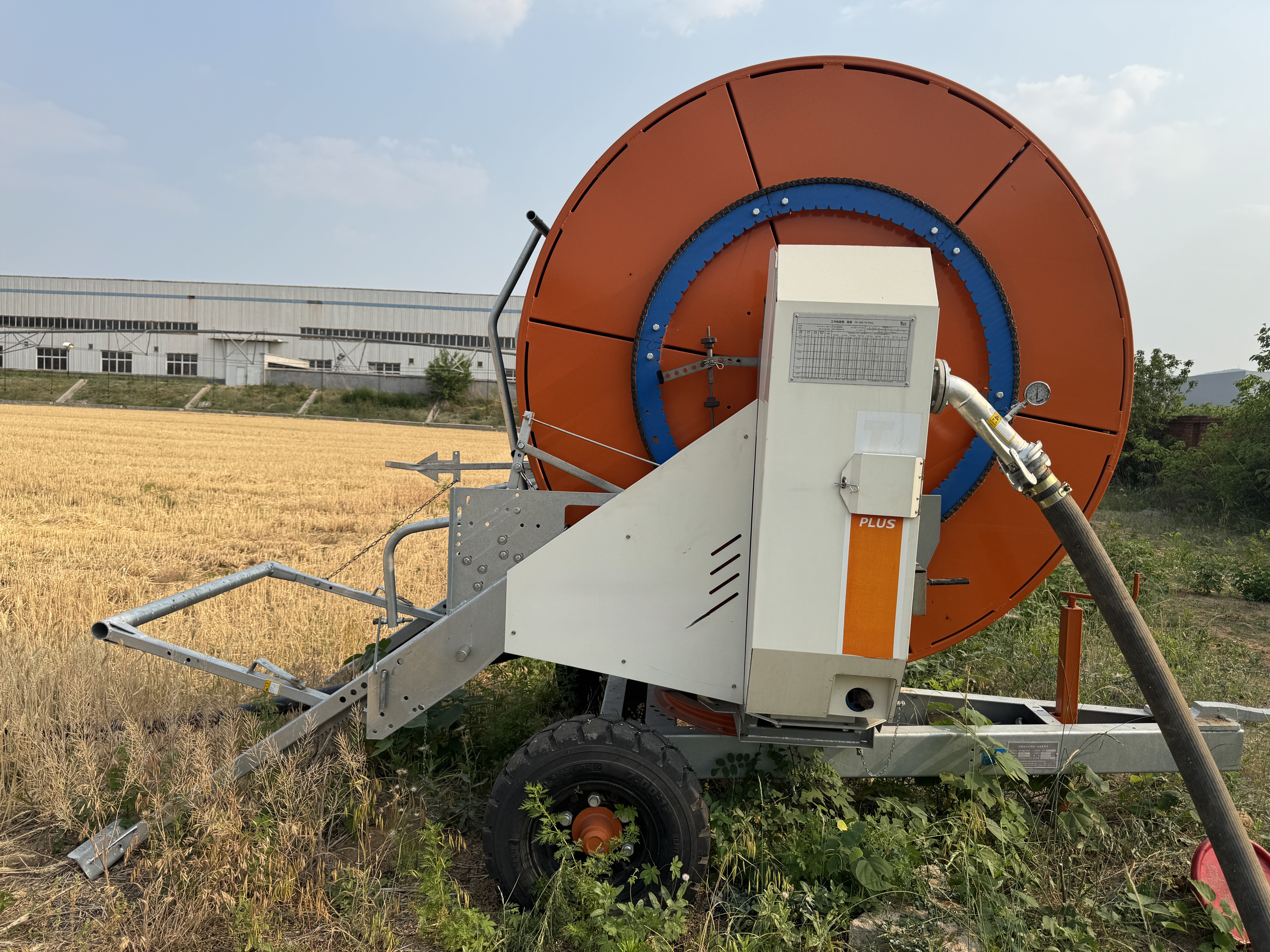

LNI02 Series Hose Reel Irrigator

LNI02 Series Hose Reel Irrigator

Newly designed turbine and gearbox are more efficient and more energy-saving; coupled with optimized mechanical structure; the total performance is increased by 20%.

Equip with intelligent automatic control system, precisely measuring the retraction speed.

The whole machine can be used for over 15 years; the service life of PE pipe is more than 10 years.

LNI02 Series Hose Reel Irrigator is a complete series of 65, 75, 85 and 90 models. The water flow ranges from 25 to 85 m³/h. The diameter of the PE pipe is between 65 and

110mm. The length of PE pipe is 200 to 450 meters and the coverage area per set is about 15 to 30 hectares.

New type and high efficient turbine TW 20

The axial-flow type TW20 turbine sets a new record of low energy consumption of hose reel irrigator with its extraordinarily low-pressure demand.

The newly designed turbine is twice as efficient as that of last generation. The energy consumed for operation is greatly decreased.

The power and speed of retraction can be guaranteed when the water flow is insufficient. Precisely control the whole system to ensure evenness of the irrigation.

Digital LCD communicator

LNI02 Series Hose Reel Irrigator is equipped with a new type speedometer:

7 inch LCD screen, easy-handle interactive interface, clear show of the equipment operation.

Spraying system

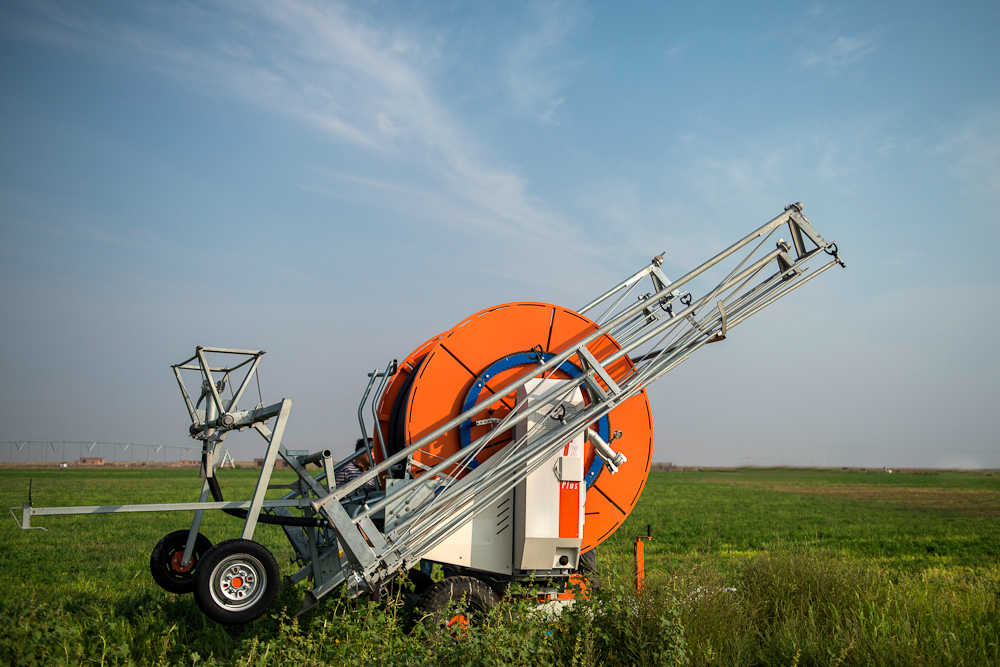

The booms are made of high-quality structural steel and connected with quick connectors, easy to assemble and dismount. The total length of booms is 26 meters, with the

sprinkling width reaching 34 meters. The equipped #11 to #19 Rain Bird nozzles perform excellent in misting and distribution evenness. The booms are applicable to tender

plants with no harm to the soil and the field.

The Twin SR101/140 sprinkler made by KOMET can spray very far, with large spraying angle and different sizes of the nozzles. It can rotate automatically and steadily. The

distance of sprinkling reaches 35 to 50 06 meters.
